Since a couple of weeks I have 3 Pekin Bantam hens in my garden. Although it is not a big deal opening and closing the chicken coop door daily, it still is a fun little project to automate this. For example the coop automatically opens at sunrise and closes at sunset.
In my Home Assistant installation I’m already using the ESPHome integration for other small sensors in my home. So why not make use of ESPHome?
The total cost for this project is about 25 euros. I did recycle multiple parts of my old defective 3D printer, therefore I only needed new endstops and the stepper driver.
In the partlist I added the current (July 2022) prices from AliExpress. I will add a link to the products I *think* you can use, although they are slightly different then the ones I already had. See it as a global shopping guideline.

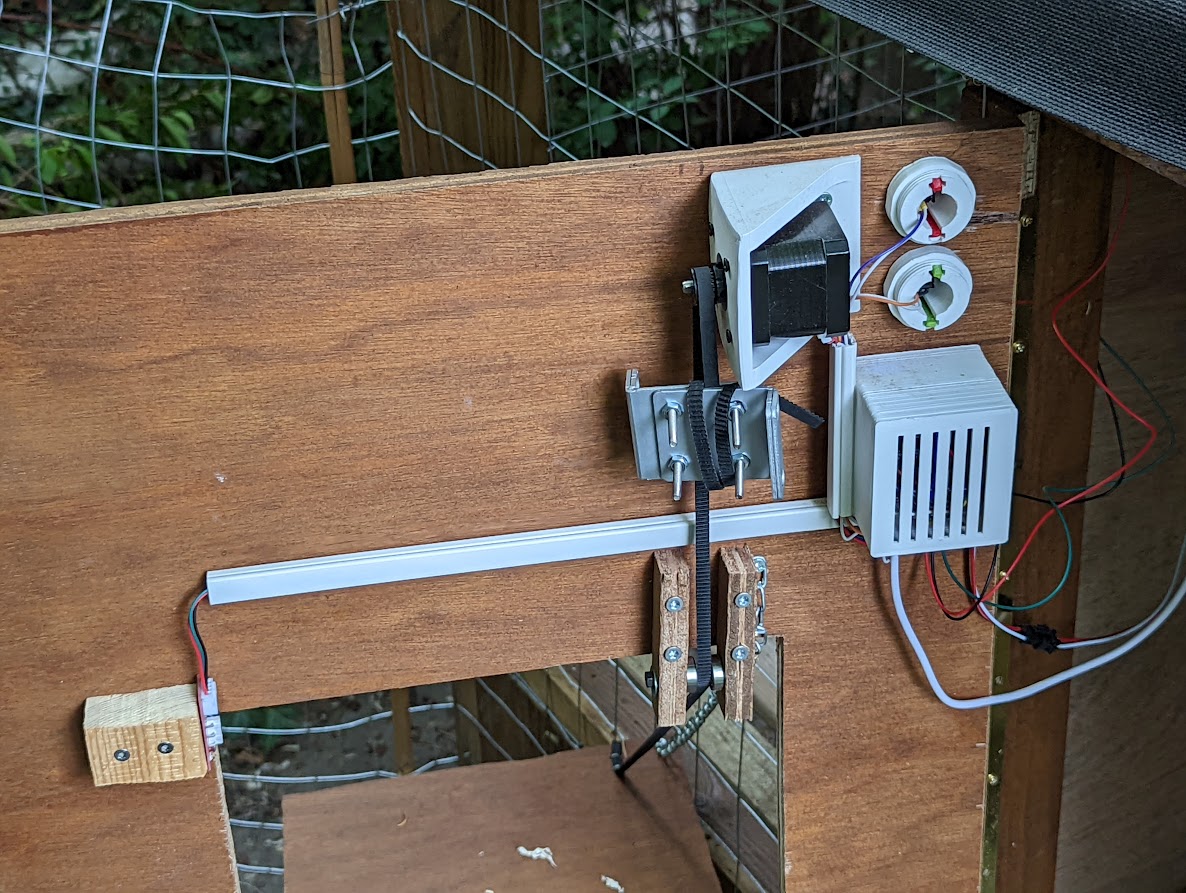

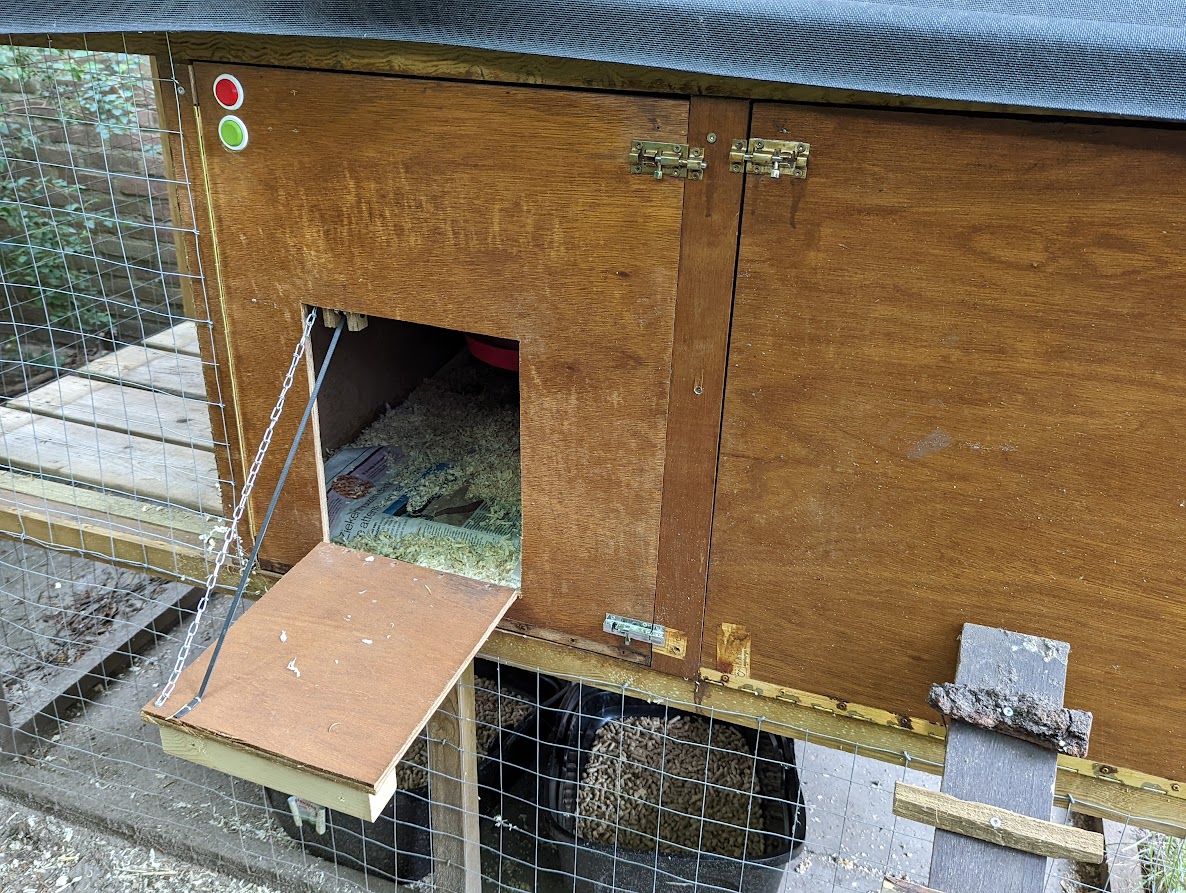

My chicken coop door is a drawbridge style door. With some adjustments this project can also be used for a sliding door. My first proof-of-concept build was a sliding door, until I realized that I didn’t have the required height…
Partlist
This is the minimum amount of parts to get your own Home Assistant / ESPHome enabled chicken coop door.
Guess it is probably a bit over-engineered. But hey, it works 🙂
- NodeMCU v3 CH340 (3 euro)
- USB adapter + micro USB cable (5 euro)
- NEMA 17 stepper motor (10 euro)
- Stepper motor wire (Included with motor)
- Timing belt (1 euro)
Size: GT2-6mm, 1 meter - Timing belt gear (1,30 euro)
20 Teeth Bore 5mm, width 6mm - A4988 stepper driver (1 euro)
- 12V, 2A power supply + DC male connector (3,50 euro)
- Some counterweight attached to the timing belt
Optional / Nice to have
- Endstop (2x) (2,50 euro)
- Momentary button / push button (2x)
I used a reset button with a 3D printed arcade button, but a premade button will also do fine) - Chain, 1 meter
The endstops are used to stop the stepper motor immediately when they are being pressed, even if the target or open_duration in the source code below aren’t met.
If you decide not to use endstops make sure to adjust the target and open_duration to match as closely as possible. This prevents the stepper motor from continuing spinning while the chicken coop door is already fully opened or closed.
The buttons are used to manually open or close the chicken coop door. Also useful when your WiFi or HomeAssistant isn’t working. You can always open/close the door.
The chain is added to prevent the weight of the door to “hang” on the motor constantly, instead the weight is “diverted” by the chain.
Very optional
- 3D printer to print some parts.
- Multimeter (Setting/measuring the voltage reference for the driver)
- Soldering iron (Unless you don’t care about cable length)
- Shrinkable tube
- Dupont connectors (I always try to combine wires into a larger connector, feels more stable.)
The following 3D print models were used. You can of course use others if you like them more.

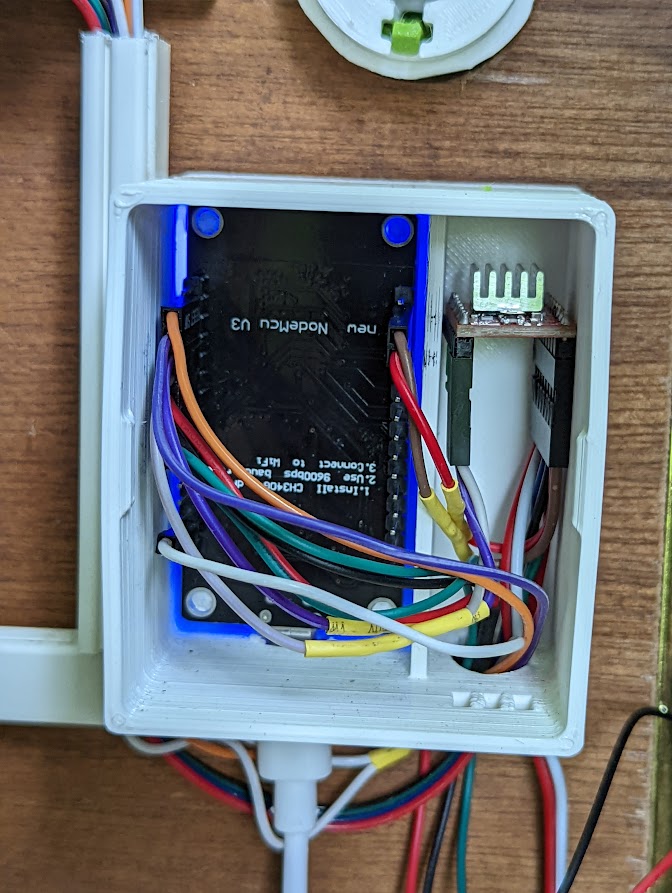

- NodeMCU DIY Smart LED Case (Scaled the height / Z axis to 500%)
- NEMA 17 Mount
- Arcade-style tactile button
Wiring

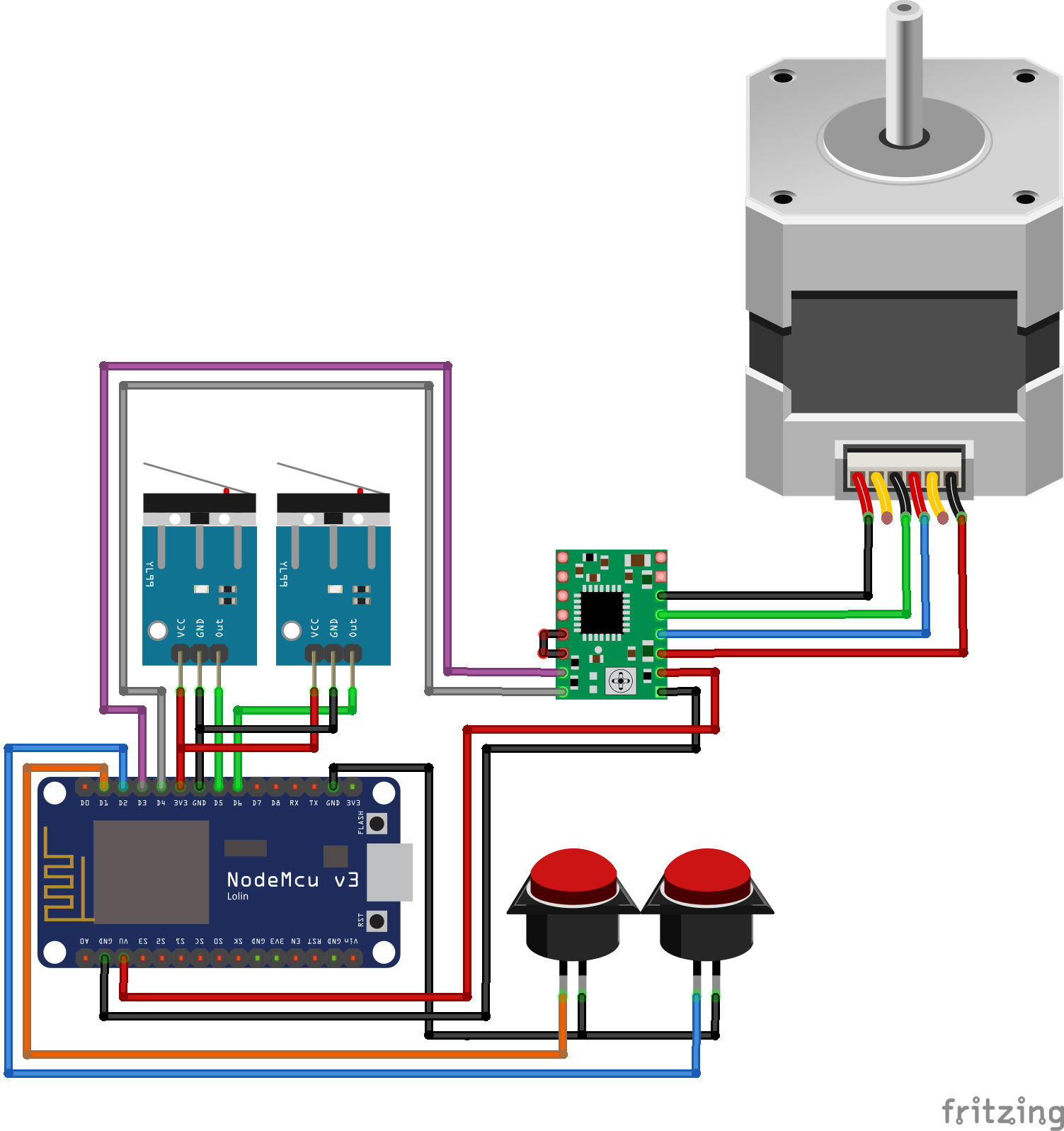

Here is the schema to connect everything to the NodeMCU.
The NodeMCU itself is powered via micro USB.
The A4988 driver is powered by the 12V 2A power supply and connected to the VMOD and GND pins. (Not drawn in the schema)
The stepper motor cable is connected to the A4988 driver. You need to connect phase 1 to 1A/1B and phase 2 to 2A/2B. Or 1 to 2A/2B and 2 to 1A/1B, this order is less important.
For some reason the stepper motor I used had the green and blue wires switched. So the phases weren’t wired correctly: 1A/2A and 1B/2B. Not a big deal, I just swapped them in the dupont connector.
In the schematics I used the (default) wiring order, I assume that this is correct for most motors and that mine was just a bit odd.
Setting the correct VREF value
It is important to set the correct VREF value on the A4988 stepper driver. The term VREF stands for voltage reference, basically the current provided from the driver to the stepper motor. To calculate the correct VREF, I want to point you to the detailed guide from all3dp. It is not very hard, but they explain it much better.
Setting the value too low and your stepper motor can skip steps while having it too high can cause overheating and damage the motor. Although our usage isn’t as precise/heavy as a 3D printer. So I can imagine that skipping a few steps or a (short) period overheating isn’t really a big issue. Still better to prevent this.
ESPHome YAML Code
It was a bit of trial and error to get it working, but in the end the chicken coop is working with the code below. Maybe that it could be done prettier, or maybe it even has some unnecessary code.
esphome: name: esp-chickencoop platform: ESP8266 board: nodemcuv2 wifi: ssid: !secret wifi_domotica password: !secret wifi_domotica_key fast_connect: true ap: ssid: "ESP Config Chickencoop" password: !secret wifi_domotica_key captive_portal: # Enable logging logger: # Enable Home Assistant API api: password: !secret api_key ota: stepper: - platform: a4988 id: chickencoop_door step_pin: D3 dir_pin: D4 max_speed: 500 steps/s acceleration: 50 deceleration: 100 cover: - platform: endstop name: "Chickencoop" id: chickencoop device_class: garage open_action: - delay: 100ms - stepper.report_position: id: chickencoop_door position: 0 - stepper.set_target: id: chickencoop_door target: 2000 - logger.log: "Chickencoop opening" open_duration: 20.0sec open_endstop: endstop_bottom close_action: - delay: 100ms - stepper.report_position: id: chickencoop_door position: 0 - stepper.set_target: id: chickencoop_door target: -2100 - logger.log: "Chickencoop closing" close_duration: 20.0sec close_endstop: endstop_top stop_action: - stepper.report_position: id: chickencoop_door position: 0 - stepper.set_target: id: chickencoop_door target: 0 - delay: 100ms max_duration: 15.0sec binary_sensor: # Endstop Top / Door fully closed - platform: gpio name: "endstop_top" pin: number: D5 inverted: true mode: INPUT_PULLUP id: endstop_top on_press: then: - logger.log: "Endstop TOP reached" - cover.stop: chickencoop - stepper.report_position: id: chickencoop_door position: 0 - stepper.set_target: id: chickencoop_door target: 0 # Endstop Bottom / Door fully opened - platform: gpio name: "endstop_bottom" pin: number: D6 mode: INPUT_PULLUP inverted: true id: endstop_bottom on_press: then: - logger.log: "Endstop BOTTOM reached" - cover.stop: chickencoop - stepper.report_position: id: chickencoop_door position: 0 - stepper.set_target: id: chickencoop_door target: 0 # Manual open button - platform: gpio pin: number: D1 mode: INPUT_PULLUP inverted: TRUE name: "Chickencoop manual opening" filters: # Small filter, to debounce the button press. - delayed_on: 25ms - delayed_off: 25ms on_press: then: cover.open: chickencoop # Manual close button - platform: gpio pin: number: D2 mode: INPUT_PULLUP inverted: TRUE name: "Chickencoop manual closing" filters: # Small filter, to debounce the button press. - delayed_on: 25ms - delayed_off: 25ms on_press: then: cover.close: chickencoop
You can add it to the Home Assistant lovelace interface and it shows up as a garage door.
The residents
And finally… the residents!
Meet Els, Ans and Bep, here they are chilling at their chicknick table hidding for some rain under an umbrella.
